Connecticut Quaternary Geology Long Island Submerged Marine Deltaic Deposits

Frequently-asked questions:


What does this data set describe?

Title:
Connecticut Quaternary Geology Long Island Submerged Marine Deltaic Deposits

Abstract:
Connecticut Quaternary Geology Long Island Submerged Marine Deltaic Deposits identifies early postglacial, marine deltaic deposits submerged in Long Island Sound. This information appears on Sheet 1 of the The Quaternary Geologic Map of Connecticut and Long Island Sound Basin (Stone and others, 2005).


The Connecticut Quaternary Geology digital spatial data combines the information portrayed on the on-land portion of the Quaternary Geologic Map of Connecticut and Long Island Sound Basin (Stone and others 2005) with the information portrayed on its sister map, the Surficial Materials Map of Connecticut (Stone and others, 1992).  When used together, these maps provide a three dimensional context for understanding and predicting the internal composition, resource potential and hydrologic character of Connecticut's glacial and postglacial deposits. Both were compiled at 1:24,000 scale, and published at 1:125,000 scale.

The Quaternary Geologic Map of Connecticut and Long Island Sound Basin (Stone and others, 2005) portrays the glacial and postglacial deposits of Connecticut (including Long Island Sound) with an emphasis on where and how they were emplaced. Glacial Ice-Laid Deposits (thin till, thick till, and deposits of individual end moraines), Early Postglacial Deposits (Late Wisconsinan to Early Holocene stream terrace and inland dune deposits) and Holocene Postglacial Deposits (alluvium, swamp deposits, marsh deposits, beach and dune deposits, talus, and artificial fill) are differentiated from Glacial Meltwater Deposits. This mapping is based on the concept of systematic northward retreat of the Late Wisconsinan glacier.  Meltwater deposits are divided into six depositional system categories (Deposits of Major Ice-Dammed Lakes, Deposits of Major Sediment-Dammed Lakes, Deposits of Related Series of Ice-Dammed Ponds, Deposits of Related Series of Sediment-Dammed Ponds, Deposits of Proximal Meltwater Streams, and Deposits of Distal Meltwater Streams) based on the arrangement and character of the groupings of sedimentary facies (morphosequences).

The Surficial Materials Map of Connecticut (Stone and others, 1992) portrays the glacial and postglacial deposits of Connecticut in terms of their aerial extent and subsurface textural relationships. Glacial Ice-Laid Deposits (thin till, thick till, end moraine deposits) and Postglacial Deposits (alluvium, swamp deposits, marsh deposits, beach deposits, talus, and artificial fill) are differentiated from Glacial Meltwater Deposits. The meltwater deposits are further characterized using four texturally-based map units (g = gravel, sg = sand and gravel, s = sand, and f = fines). In many places a single map unit (e.g. sand) is sufficient to describe the entire meltwater section.  Where more complex stratigraphic relationships exist, "stacked" map units are used to characterize the subsurface (e.g. sg/s/f - sand and gravel overlying sand overlying fines). Where postglacial deposits overlie meltwater deposits, this relationship is also described (e.g. alluvium overlying sand). Map unit definitions (Surficial Materials Polygon Code definitions, found in the metadata) provide a short description of the inferred depositional environment for each of the glacial meltwater map units.

The geologic contacts between till and meltwater deposits coincide on both the Quaternary and Surficial Materials maps, as do the boundaries of polygons that define areas of thick till, alluvium, swamp deposits, marsh deposits, beach and dune deposits, talus, and artificial fill. Within the meltwater deposits, a Quaternary map unit (deposit) may contain several Surficial Materials textural units (akin to facies within a delta, for example). Combining the textural and vertical stacking information from the Surficial Materials map with the orderly portrayal of morphosequence relationships, up and down valley, that can be gleaned from the Quaternary map provides a three dimensional predictive context for relating the geologic setting of Connecticut's glacial meltwater deposits to their behavior as aquifers and/or transmitters of contaminants.

Since this data layer is a polygon and line feature representation of the two maps combined, each map unit's depiction and description could provide information as to its aerial extent, subsurface textural characteristics, depositional and paleogeographic settings, and facies composition in a morphosequence context. Therefore, a typical meltwater polygon would have a combination of Quaternary (e.g. Deposit of Major Sediment-Dammed Lake; Glacial Lake Middletown Cromwell Deltaic Deposit) and Surficial Materials (e.g. sand and gravel overlying sand overlying fine) map attributes.  Additional polygon features are incorporated to define surface water areas for streams, lakes, ponds, bays, and estuaries greater than 5 acres in size. Line features describe the type of boundary between individual geologic or textural units such as a geologic contact line between two different geologic units or a linear shoreline feature between a textural unit and an adjacent waterbody.

The data have been updated to reflect minor changes in map unit name (QUPOLY_COD) for consistency with the 2005 publication of the Quaternary Geologic Map of Connecticut and Long Island Sound Basin. Previously distributed versions of CTQSGEOM were consistent with the 1998 Open-file Report for the same map.

It is important to note that this data layer represents only the on-land portion of the Quaternary Geologic Map of Connecticut and Long Island Sound Basin (Stone and others, 2005). The off-shore geologic units are organized in separate data layers (LISQMOR, LISQFAN, LISQLAKE, LISQCHAN, LISQMARD) which can be used in conjunction with this data layer. These Long Island Sound layers have been mapped at 1:80,000 scale using seismic reflection data.

The CTQSGEOM data layer should be used as the geologic base for Connecticut Quaternary Geology / Surficial Materials Features (CTQSFEAT) data layer which represents features such as eskers, meltwater channels, spillways, and locations of radio-carbon dated samples.

Supplemental information:
Data manually digitized from 1:24,000-scale mylar quadrangle compilation sheets prepared for the Surficial Materials Map of Connecticut, 1:125,000 scale (Stone and others, 1992) and the Quaternary Geologic Map Of Connecticut and Long Island Sound Basin, 1:125,000 scale (Stone and others,2005).  For a more complete understanding of the geologic principles behind the data it is advisable to consult these source maps which contain cross sections, diagrams and text not available in digital form.  Digital files which should be used with this data set include: SIM-2784.pdf (pamphet from the Quaternary Geologic Map Of Connecticut and Long Island Sound Basin), Surficial Materials data layer, and the companion data sets: Connecticut Quaternary Geology / Surficial Materials Features (CTQSFEAT), and Long Island Sound moraines (LISQMOR), lacustrine fans (LISQFAN), lake-bottom and deltaic deposits (LISQLAKE), channel-fill deposits (LISQCHAN), and marine deltaic deposits (LISQMARD); all available for download at http://www.dep.state.ct.us/gis.

  1. How should this data set be cited?

    U.S. Geological Survey (data compiler, editor and publisher), State of Connecticut, Department of Environmental Protection, Geological and Natural History Survey (data compiler, editor and publisher), 2005, Connecticut Quaternary Geology Long Island Submerged Marine Deltaic Deposits: State of Connecticut, Department of Environmental Protection, Hartford, Connecticut, USA.

    Online links:
    This is part of the following larger work:

    Janet Radway Stone, U.S. Geological Survey, John P. Schafer, U.S. Geological Survey, Elizabeth Haley London, U.S. Geological Survey, Mary L. DiGiacomo-Cohen, Long Island Sound Resource Center, Ralph S. Lewis, Connecticut Geological and Natural History Survey, Woodrow B. Thompson, Maine Geological Survey, 2005, Quaternary Geologic Map of Connecticut and Long Island Sound Basin: Scientific Investigations MapSIM-2784, U.S. Department of the Interior, U.S. Geological Survey, Reston, Virginia, USA.

    Online links:
    Other citation details:
    The Quaternary Geologic Map of Connecticut and Long Island Sound Basin is published by the U.S. Geological Suvey in cooperation with the State of Connecticut, Department of Environmental Protection, Geologic and Natural History Survey. The map is a USGS Scientific Investigations Map 2784 (SIM-2784), scale 1:125,000, 2 sheets, available for purchase from the Connecticut DEP Store or U.S. Geological Survey.

    This is part of the following larger work:

    Janet Radway Stone, U.S. Geological Survey, John P. Schafer, U.S. Geological Survey, Elizabeth Haley London, U.S. Geological Survey, Woodrow B. Thompson, U.S. Geological Survey, 1992, Surficial Materials Map of Connecticut: U.S. Geological Survey special map, 2 sheetsNone, U.S. Department of the Interior, U.S. Geological Survey, Reston, Virginia, USA.

    Online links:
    Other citation details:
    The Surficial Materials Map of Connecticut is published by the U.S. Geological Suvey in cooperation with the State of Connecticut, Department of Environmental Protection, Geologic and Natural History Survey. The map is a USGS Special Map, Scale 1:125,000, 2 sheets, available for purchase from the Connecticut DEP Store or U.S. Geological Survey.

  2. What geographic area does the data set cover?

    Bounding coordinates:
    West: -72.905102
    East: -72.322347
    North: 41.277094
    South: 40.991134

  3. What does it look like?

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/quaternarygeologylisfullview.gif (GIF)
    Full view of Connecticut Quaternary Geology Long Island Sound Basin Data

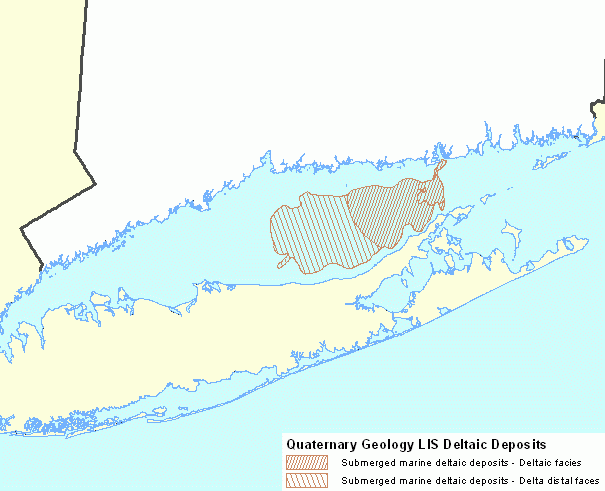

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/quaternarygeologylisdeltafullview.gif (GIF)
    Full view of Connecticut Quaternary Geology Long Island Sound Submerged Marine Deltaic Deposits

  4. Does the data set describe conditions during a particular time period?

    Calendar date: 2005
    Currentness reference:
    publication date

  5. What is the general form of this data set?

    Geospatial data presentation form: vector digital data

  6. How does the data set represent geographic features?

    1. How are geographic features stored in the data set?

      This is a Vector data set. It contains the following vector data types (SDTS terminology):
      • G-polygon (5)

    2. What coordinate system is used to represent geographic features?

      The map projection used is Lambert Conformal Conic.

      Projection parameters:
      Lambert Conformal Conic
      Standard parallel: 41.200000
      Standard parallel: 41.866667
      Longitude of central meridian: -72.750000
      Latitude of projection origin: 40.833333
      False easting: 999999.999996
      False northing: 499999.999998

      Planar coordinates are encoded using coordinate pair.
      Abscissae (x-coordinates) are specified to the nearest 0.000328.
      Ordinates (y-coordinates) are specified to the nearest 0.000328.
      Planar coordinates are specified in survey feet.

      The horizontal datum used is North American Datum of 1983.
      The ellipsoid used is Geodetic Reference System 80.
      The semi-major axis of the ellipsoid used is 6378137.000000.
      The flattening of the ellipsoid used is 1/298.257222.

      Vertical coordinate system definition:
      Altitude system definition:
      Altitude resolution: 1.000000
      Altitude encoding method: Explicit elevation coordinate included with horizontal coordinates

  7. How does the data set describe geographic features?

    Connecticut Quaternary Geology Long Island Submerged Marine Deltaic Deposits
    Polygons represent map units which describe the Quaternary Geologic deposits. (Source: U.S. Geological Survey and State of Connecticut, Department of Environmental Protection)

    QUATGEOL
    Quaternary Geology - This attribute provides the full text name for the values stored in the QUPOLY_COD field. Quaternary Geology is the English language equivalent of (decodes) the QUPOLY_COD field. For example, QUPOLY_COD and QUATGEOL attribute values for the same polygon feature are st and Stream-terrace deposits, respectively. (Source: U.S. Geological Survey and State of Connecticut, Department of Environmental Protection)


    Examples include: Inland dune deposits, Uncorrelated deposits of ice-dammed ponds, Mystic moraine deposits, Shepaug River deposits

    OBJECTID
    Internal feature number. (Source: ESRI)


    Sequential unique whole numbers that are automatically generated.

    FACIE
    QUPOLY_CD
    SHAPE
    Feature geometry. (Source: ESRI)


    Coordinates defining the features.

    SHAPE.area
    SHAPE.len
    Entity and attribute overview:
    none

    Entity and attribute detail citation:
    Stone, J.R., Schafer, J.P., London, E.H., DiGiacomo-Cohen, M.L., Lewis, R.S. and Thompson, W.B., 2005, Quaternary Geologic Map of Connecticut and Long Island Sound Basin, U.S. Geological Survey Scientific Investigaions Map 2784, 2 sheets, scale 1:125,000.
