Phragmites 1968

Frequently-asked questions:


What does this data set describe?

Title:
Phragmites 1968

Abstract:
Phragmites 1968 is a 1:12,000-scale, polygon feature-based layer that includes areas where phragmites existed in 1968 along the lower Connecticut River corridor from the towns of Portland and Cromwell south to Long Island Sound.  This layer was published at the same time as the Phragmites 1994 layer in order to depict the historic differences in phragmites growth between 1968 and 1994.  The Phragmites 1968 layer was compiled using 1:12,000 black and white digital orthophotos obtained in 1968 as part of a Connecticut Department of Environmental Protection aerial mapping survey.  This data represents a particular point in time (1968).  It is not updated and does not depcit current conditions.  Features are polygon locations that represent the approximate location of phragmites growth in 1968.  Attribute information is comprised of the NAME68 attribute that identifies one of 25 general locations of phragmites growth.  Other attributes include AV_LEGEND that depicts the existence of phragmites, and ACREAGE that depicts the size of each polygon in acres.  Data was compiled at a 1:12,000 scale.

Supplemental information:
For additional information, refer to the complete report generated as a result of the study that commissioned the publication of the Phragmites 1968 and Phragmites 1994 layers.   This report is entitled "Spatial Pattern of Phragmites Australis (CAV) Trin ex Steuf. Within the Tidelands of the Connecticut River, 1994"  and was authored by Nels Barrett (United States Department of Agriculture Natural Resources Conservation Service, 344 Merrow Road, Suite A., Tolland, Connecticut 06084 USA) and Sandy Prisloe (University of Connecticut Cooperative Extension System, College of Agricultural and Natural Resources, P.O. Box 70, Haddam, CT 06438 USA).

  1. How should this data set be cited?

    U.S. Department of Agriculture Natural Resources Conservation Service (data compiler and editor), University of Connecticut Cooperative Extension System (data compiler and editor), State of Connecticut, Department of Environmental Protection (data publisher), 1995, Phragmites 1968: State of Connecticut, Department of Environmental Protection, Hartford, Connecticut, USA.

    Online links:
    Other citation details:
    This layer includes information that is static and was compiled at a specific point in time. It is not updated.

  2. What geographic area does the data set cover?

    Bounding coordinates:
    West: -72.452450
    East: -72.299130
    North: 41.444400
    South: 41.265219

  3. What does it look like?

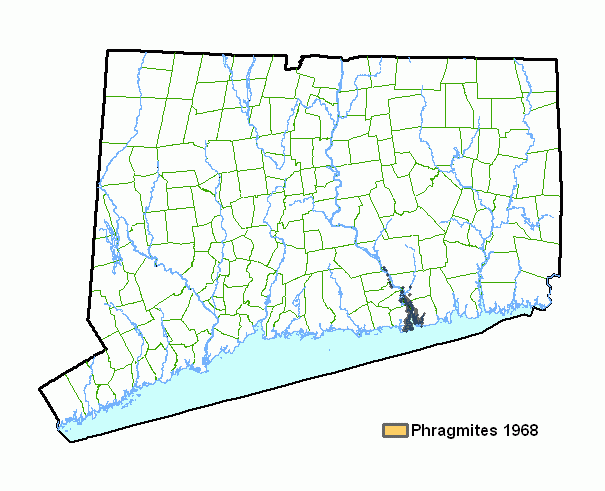

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/phragmites1968fullview.gif (GIF)
    Full view of Phragmites 1968

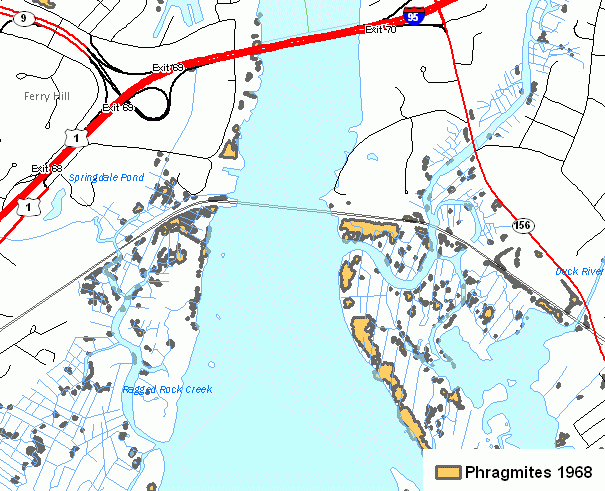

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/phragmites1968detailview.gif (GIF)
    Detail view of Phragmites 1968

  4. Does the data set describe conditions during a particular time period?

    Calendar date: 1995
    Currentness reference:
    publication date

  5. What is the general form of this data set?

    Geospatial data presentation form: vector digital data

  6. How does the data set represent geographic features?

    1. How are geographic features stored in the data set?

      Indirect spatial reference:
      State of Connecticut, United States of America

      This is a Vector data set. It contains the following vector data types (SDTS terminology):
      • G-polygon (909)

    2. What coordinate system is used to represent geographic features?

      The map projection used is Lambert Conformal Conic.

      Projection parameters:
      Lambert Conformal Conic
      Standard parallel: 41.200000
      Standard parallel: 41.866667
      Longitude of central meridian: -72.750000
      Latitude of projection origin: 40.833333
      False easting: 999999.999996
      False northing: 499999.999998

      Planar coordinates are encoded using coordinate pair.
      Abscissae (x-coordinates) are specified to the nearest 0.000250.
      Ordinates (y-coordinates) are specified to the nearest 0.000250.
      Planar coordinates are specified in survey feet.

      The horizontal datum used is North American Datum of 1983.
      The ellipsoid used is Geodetic Reference System 80.
      The semi-major axis of the ellipsoid used is 6378137.000000.
      The flattening of the ellipsoid used is 1/298.257222.

      Vertical coordinate system definition:
      Altitude system definition:
      Altitude resolution: 1.000000
      Altitude encoding method: Explicit elevation coordinate included with horizontal coordinates

  7. How does the data set describe geographic features?

    Phragmites 1968
    Phragmites growth in 1968 represented as polygon features. (Source: State of Connecticut, Department of Environmental Protection)

    OBJECTID
    Internal feature number. (Source: ESRI)


    Sequential unique whole numbers that are automatically generated.

    NAME68
    Name of location where phragmites exists. (Source: State of Connecticut, Department of Environmental Protection)


    ValueDefinition
    Black Hall River
    Black Hall River area
    Calves Island
    Calves Island area
    Chapman Pond
    Chapman Pond area
    Chester Creek
    Chester Creek area
    Deep River
    Deep River area
    Duck River
    Duck River area
    Essex Middle Cove Complex
    Essex Middle Cove Complex area
    Fenwick
    Fenwick area
    Ferry Point
    Ferry Point area
    Goose Island
    Goose Island area
    Great Island
    Great Island area
    Great Meadow / Essex North Cove
    Great Meadow / Essex North Cove area
    Griswold Point
    Griswold Point area
    Hamburg Cove
    Hamburg Cove area
    Joshua Creek
    Joshua Creek area
    Lieutenant River North
    Lieutenant River North area
    Lieutenant River South
    Lieutenant River South area
    Lord Cove
    Lord Cove area
    North Cove
    North Cove area
    Nott Island
    Nott Island area
    Otter Cove
    Otter Cove area
    Post & Prat Cove
    Post & Prat Cove area
    Ragged Rock Creek
    Ragged Rock Creek area
    Smiths Neck
    Smiths Neck area
    South Cove
    South Cove area
    Upper Island Marsh Complex
    Upper Island Marsh Complex area

    ACREAGE
    Size of feature in acres (Source: State of Connecticut, Department of Environmental Protection)


    Real numbers that are calculated.

    SHAPE
    Feature geometry. (Source: ESRI)


    Coordinates defining the features.

    Shape
    Feature geometry. (Source: ESRI)


    Coordinates defining the features.

    SHAPE.area
    SHAPE.len
    Entity and attribute overview:
    Includes Phragmites 1968 features such as the location and size of the polygon.  Attributes include AV_LEGEND, which identifies the polygon as phragmites, ACREAGE, which identifies the size of the polygon in acres, and NAME68, which identifies the general location (one of 25 areas) of the feature.  This layer is best symbolized as a single feature type.
