Capitol Region Council of Government 2009 Orthophoto Index contains polygon features that delineate the boundaries used in the creation of the 2009 digital orthophotography for the Capitol Region Council of Government in Connecticut. This index may be used to determine the names of the GeoTIFFs acquired for the 2009 Capitol Region Council of Governments Orthophotography. Aerial photography was acquired during the spring of 2009. It is 3 inch orthorectified imagery, 3Band (natural color), leaf off. The ground resolution for this imagery is 3 inches per image pixel.

1. How should this data set be cited?


   Capitol Region Council of Governments, State of Connecticut, Office of Policy and Management, 20100101, Capitol Region Council of Governments 2009 Orthophoto Index.


   Online links:

   • http://www.ct.gov/deep



2. What geographic area does the data set cover?


   Bounding coordinates:

   West: -72.970871

   East: -72.271451

   North: 42.040870

   South: 41.573368


3. What does it look like?


   http://www.cteco.uconn.edu/metadata/dep/browsegraphic/orthoindex2009crcogfullview.gif (GIF)

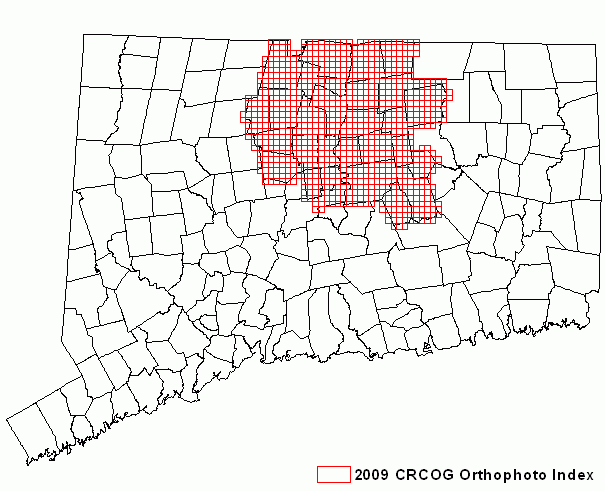

   Full view of Capitol Region Council of Government 2009 Orthophoto Tile Index


   http://www.cteco.uconn.edu/metadata/dep/browsegraphic/orthoindex2009crcogdetailview.gif (GIF)

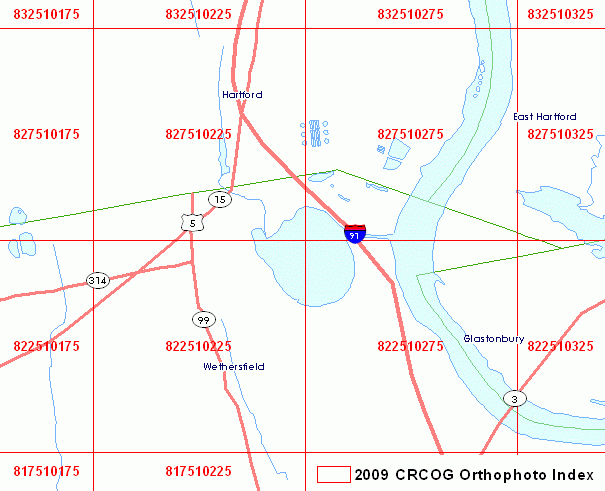

   Detail view of Capitol Region Council of Government 2009 Orthophoto Tile Index


4. Does the data set describe conditions during a particular time period?


   Calendar date: 2009
   Currentness reference:

   ground condition when photography was acquired



5. What is the general form of this data set?


   Geospatial data presentation form: vector digital data


6. How does the data set represent geographic features?


   1. How are geographic features stored in the data set?


      This is a Vector data set. It contains the following vector data types (SDTS terminology):

      • G-polygon (943)


   2. What coordinate system is used to represent geographic features?


      The map projection used is Lambert Conformal Conic.




      Projection parameters:

      Lambert Conformal Conic

      Standard parallel: 41.200000

      Standard parallel: 41.866667

      Longitude of central meridian: -72.750000

      Latitude of projection origin: 40.833333

      False easting: 999999.999996

      False northing: 499999.999998




      Planar coordinates are encoded using coordinate pair.

      Abscissae (x-coordinates) are specified to the nearest 0.000328.

      Ordinates (y-coordinates) are specified to the nearest 0.000328.

      Planar coordinates are specified in survey feet.




      The horizontal datum used is North American Datum of 1983.

      The ellipsoid used is Geodetic Reference System 80.

      The semi-major axis of the ellipsoid used is 6378137.000000.

      The flattening of the ellipsoid used is 1/298.257222.


      Vertical coordinate system definition:

      Altitude system definition:

      Altitude resolution: 1.000000

      Altitude encoding method: Explicit elevation coordinate included with horizontal coordinates



7. How does the data set describe geographic features?


   Capitol Region Council of Governments 2009 Orthophoto Index

   OBJECTID

   Internal feature number. (Source: ESRI)





   Sequential unique whole numbers that are automatically generated.




   TILE

   Orthophoto tile name




   Shape

   Feature geometry. (Source: ESRI)





   Coordinates defining the features.




   Shape.area

   Shape.len

1. Who are the originators of the data set? (may include formal authors, digital compilers, and editors)


   • Capitol Region Council of Governments
   • State of Connecticut, Office of Policy and Management


2. Who also contributed to the data set?


3. To whom should users address questions about the data?



This index may be used to determine the names of the GeoTIFFs acquired for the 2009 Capitol Region Council of Governments Orthophotography.

1. Where did the data come from?


2. What changes have been made?



1. How well have the observations been checked?


2. How accurate are the geographic locations?


3. How accurate are the heights or depths?


4. Where are the gaps in the data? What is missing?


5. How consistent are the relationships among the observations, including topology?



None. No restrictions or legal prerequisites for using the data.

Who distributes the data set?


What's the catalog number I need to order this data set?


Capitol Region Council of Governments 2009 Orthophoto Index


What legal disclaimers am I supposed to read?


How can I download or order the data?


• Availability in digital form:




Data format:	in format Shapefile, Feature Class (version ArcGIS)
Network links:	http://www.ct.gov/deep



• Cost to order the data: An online copy of the data may be accessed without charge.



Is there some other way to get the data?


What hardware or software do I need in order to use the data set?
