LIS Dredged Material Disposal Sites

Frequently-asked questions:


What does this data set describe?

Title:
LIS Dredged Material Disposal Sites

Abstract:
LIS Dredged Material Disposal Sites is a polygon feature-based layer that depicts the official locations of the four active (currently used) sites for depositing sediments approved for open water disposal in Long Island Sound.  It does not include historic or discontinued disposal sites.  The layer was compiled initially between 1999 and 2001 and depicts current conditions.  Compilation scale is unknown.  Attribute information is comprised of codes to uniquely identify individual features (locations of dredge disposal sites), encode the features, and cartographically represent (symbolize) these features on a map.  This layer is updated as needed.

Disposal activities in Long Island Sound are regulated by the following Federal statutes: the Clean Water Acts of 1977, the Coastal Zone Management Act, the Endangered Species Act of 1973, the Marine Protection, Research, and Sanctuaries Act of 1972, the National Environmental Policy Act of 1969, the Fish and Wildlife Coordination Act of 1958, and the Rivers and Harbors Act of 1899.  In addition to Federal oversight, both Connecticut and New York also regulate open water disposal in the waters of Long Island Sound.  In Connecticut, authority stems from the state's Structures, Dredging and Fill statute, the Tidal Wetlands statute, and the Connecticut Coastal Management Act.   In New York, disposal is regulated through the Use and Protection of Waters Regulation, the  Tidal Wetlands Use Regulations, the Coastal Erosion Management Regulations, the State Environmental Quality Review Act,  the State Historic Preservation Act, the Waterfront Revitalization and Coastal Resources Act, and the New York Coastal Management Program.

The practice of open water disposal in Long Island Sound utilizes one of the following management strategies:
1. Unconfined Open Water Disposal: A process by which material deemed to be environmentally safe is deposited at a given site.
2. Confined Open Water Disposal: A process by which sediments not suitable for unconfined open water disposal are deposited and then covered or "capped" with environmentally safe material.  A variation of this method occurs when previous sediment mounds are used to form a ring into which material not suitable for unconfined open water disposal can be placed and then capped accordingly.

The datalayer was originally created from information provided by: (1) Carey, D., Valente R., Murray P., and Rhoads, D. 1998. State of Connecticut Dept. of Environmental Protection Office of Long Island Sound Programs Dredged Sediment Management Study: Long Island Sound Dredged Material Management Approach. SAIC Peport No. 442, Science Applications International Corporation. Appendix F.; and (2) Various US ACOE DAMOS Monitoring Cruise Reports, 1991-2000.  Updates for the 2005 edition included information from The Final Rulemaking and Response to Comments Document for the Final Environmental Impact Statement (FEIS) for the Designation of Dredged Material Disposal Sites in Central and Western Long Island Sound, US Environmental Protection Agency, May 19, 2005.

Supplemental information:
As part of the overall management approach, the four sites have been extensively monitored by the US Army Corps of Engineer's (ACOE) Disposal Area MOnitoring System (DAMOS) since 1977.  Each site is briefly summarized as follows:

Western Long Island Sound Disposal Site: The Western Long Island Sound Disposal Site (WLIS) is located 4.63 km south of Long Neck Point, CT.  Dredged material has been deposited annually at the 5.35 km2 site since 1982 and consists mainly of fine silts and clays.  Sensitive local resources and public concern limit disposal to material with only low levels of contamination, therefore, only unconfined open water disposal is employed.  WLIS has been extensively monitored by the DAMOS program since the mid 1980's.  Feature data updated as of 2005.

Central Long Island Sound Disposal Site: The Central Long Island Sound Disposal Site (CLIS) was designated in 1979 and incorporates a previous disposal area, the New Haven Disposal Site, that was in use since 1972.  Currently, CLIS encompasses an area of 8.26 km2 and is located approximately 10.37 km south of South End Point in East Haven CT.  Because of its centralized location in Long Island Sound CLIS has been one of the most historically active disposal sites in New England.  Characterized by predominantly silty material, CLIS mainly uses a confined disposal strategy, and the site has been monitored by  DAMOS since 1977.  Feature data updated as of 2005.

Cornfield Shoals Disposal Site: The Cornfield Shoals Disposal Site (CSDS) was designated for dredged material disposal in 1976 and is located 6.12 km southeast of Cornfield Point, Old Saybrook, CT.  Because of strong tidal currents in the area material deposited at CSDS is usually dispersed following release, often being transported outside the boundaries of  the 3.42 km2 site.  Therefore material disposed at CSDS cannot be capped and must be shown to have no adverse impact to the environment.  Average annual disposal volumes at CSDS are much less than the other sites, and are typically characterized by sandy sediments.  Disposal is restricted from June 1 through September 30 to protect lobster fishing and oyster spawning during the summer.  CSDS has been monitored by the DAMOS program since 1978.

New London Disposal Site: The New London Disposal Site (NLDS) is located 5.38 km south of Eastern Point in Groton, CT.  The 3.42 km2 site is the shallowest of the four sites, ranging in depth from 14 to 24 meters, and has two distinct management areas within its boundaries.  One is the 300 meter wide submarine transit corridor to allow passage for submarines to the US Navy base in Groton, CT, and the other is the New York-Connecticut state boundary line (approximately 0.43 km2 of the south east corner of NLDS lies in New York state waters.)  Similar to CLIS, confined disposal methods are suitable for NLDS.  Because of lobster fishing and oyster spawning during the summer, disposal is restricted at CLIS from June 1 through September 30.  NLDS has been actively monitored by DAMOS since 1977.

  1. How should this data set be cited?

    State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher), 2001, LIS Dredged Material Disposal Sites: State of Connecticut, Department of Environmental Protection, Hartford, Connecticut, USA.

    Online links:
    Other citation details:
    Except for periodic corrections, this layer includes information that is relatively static and does not change over time.

  2. What geographic area does the data set cover?

    Bounding coordinates:
    West: -73.499842
    East: -72.065520
    North: 41.281312
    South: 40.981486

  3. What does it look like?

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/LISdredgeddisposal.gif (GIF)

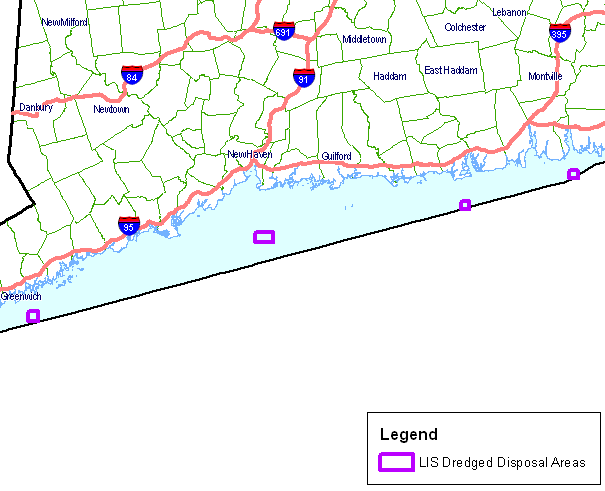

    Full view of Dredge Disposal Sites

  4. Does the data set describe conditions during a particular time period?

    Calendar date: 2005
    Currentness reference:
    ground condition

  5. What is the general form of this data set?

    Geospatial data presentation form: vector digital data

  6. How does the data set represent geographic features?

    1. How are geographic features stored in the data set?

      Indirect spatial reference:
      State of Connecticut, United States of America

      This is a Vector data set. It contains the following vector data types (SDTS terminology):
      • G-polygon (4)
      • Point (216)

    2. What coordinate system is used to represent geographic features?

      The map projection used is Lambert Conformal Conic.

      Projection parameters:
      Lambert Conformal Conic
      Standard parallel: 41.200000
      Standard parallel: 41.866667
      Longitude of central meridian: -72.750000
      Latitude of projection origin: 40.833333
      False easting: 999999.999996
      False northing: 499999.999998

      Planar coordinates are encoded using coordinate pair.
      Abscissae (x-coordinates) are specified to the nearest 0.000250.
      Ordinates (y-coordinates) are specified to the nearest 0.000250.
      Planar coordinates are specified in survey feet.

      The horizontal datum used is North American Datum of 1983.
      The ellipsoid used is Geodetic Reference System 80.
      The semi-major axis of the ellipsoid used is 6378137.000000.
      The flattening of the ellipsoid used is 1/298.257222.

      Vertical coordinate system definition:
      Altitude system definition:
      Altitude resolution: 1.000000
      Altitude encoding method: Explicit elevation coordinate included with horizontal coordinates

  7. How does the data set describe geographic features?

    LIS Dredged Material Disposal Sites
    Long Island Sound Dredged Material Disposal Sites Sites represented as polygon features

    OBJECTID
    Internal feature number. (Source: ESRI)


    Sequential unique whole numbers that are automatically generated.

    SHAPE
    Feature geometry. (Source: ESRI)


    Coordinates defining the features.

    AREA_NAME
    Name of disposal area.  Decodes the AV_LEGEND attribute. (Source: State of Connecticut, Department of Environmental Protection)


    ValueDefinition
    Western Long Island Sound Disposal Site
    Decodes WLIS from the AV_LEGEND attribute.
    Cornfield Shoalds Disposal Site
    Decodes CSDS from the AV_LEGEND attribute.
    Central Long Island Sound Disposal Site
    Decodes CLIS from the AV_LEGEND attribute
    New London Disposal Site
    Decodes NLIS from the AV_LEGEND attribute.

    FROM_DEPTH
    Upper range of water depth at site, in meters. (Source: State of Connecticut, Department of Environmental Protection)


    Whole number representing meters.

    LOCATION
    Direction and distance to site from shore location. (Source: State of Connecticut, Department of Environmental Protection)


    Distance and bearing data from points along the Connecticut shore to the disposal sites

    CNTRCOORDX
    X value (longitude) of center coordinate in decimal degrees, NAD 83. (Source: State of Connecticut, Department of Environmental Protection)


    Negative number representing x coordinate (longitiude).

    CNTRCOORDY
    Y value (latitude) of center coordinate in decimal degrees, NAD 83. (Source: State of Connecticut, Department of Environmental Protection)


    Positive number representing y coordinate (latitude).

    DSP_METHOD
    Approved disposal method(s) for the site. (Source: State of Connecticut, Department of Environmental Protection)


    ValueDefinition
    confined
    Contaminated dredged material may be capped (covered) with cleaner material
    unconfined
    Dredged material may not be capped (covered) with cleaner material, i.e., highly contaminated material is not allowed
    confined , unconfined
    Both disposal methods are allowed

    TO_DEPTH
    Lower range of water depth at site, in meters. (Source: State of Connecticut, Department of Environmental Protection)


    Whole number representing meters.

    SITESIZE
    Text field provding dimensions of disposal site, in km. (Source: State of Connecticut, Department of Environmental Protection)


    Whole number representing dimensions in kilometers.

    AREA_SQKM
    Calculated area of polygon feature in square kilometers.  Note, AREA_SQKM values are not automatically updated after modifying feature geometry (shape). Values must be recalculated after features are edited, simplified, generalized, clipped, dissolved, etc. (Source: State of Connecticut, Department of Environmental Protection)


    Real numbers representing dimensions in square kilometers.

    AV_LEGEND
    A text field for symbolizing different feature types on a map (Source: State of Connecticut, Department of Environmental Protection)


    ValueDefinition
    WLIS
    Western Long Island Sound Disposal Site
    CLIS
    Central Long Island Sound Disposal Site
    CSDS
    Cornfield Shoals Disposal Site
    NLDS
    New London Disposal Site

    LENGTH_KM
    Calculated perimeter length of polygon feature in kilometers.  Note, LENGTH_KM values are not automatically updated after modifying feature geometry (shape). Values must be recalculated after features are edited, simplified, generalized, clipped, dissolved, etc. (Source: Stae of Connecticut, Department of Environmetal Protection)


    Real numbers representing dimensions in kilometers.

    SHAPE.area
    SHAPE.len
    Entity and attribute overview:
    Includes the four current dredged material disposal sites as polygon features in Long Island Sound.  Information encoded about these features includes numeric and textual identification codes, site name, water depth information, locational information such as x and y coordinates in decimal degrees and direction and distance to the site, disposal method, and dimensions of the disposal site.  Use AV_LEGEND to uniquely identify features and to symbolize features on a map.   Use AREA_NAME to label features on a map.
