Connecticut and Vicinity Town Boundary Line

Metadata:


Identification_Information:
Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher)
Originator: U.S. Geological Survey, National Mapping Program (data compiler)
Originator: MassGIS (data compiler and publisher)
Originator: New Jersey Department of Environmental Protection (data compiler and publisher)
Originator: State of New York (data compiler and publisher)
Originator: Rhode Island Geograhic Information System (data compiler and publisher)
Publication_Date: 20081020
Title:
Connecticut and Vicinity Town Boundary Line
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Hartford, Connecticut, USA
Publisher: State of Connecticut, Department of Environmental Protection
Online_Linkage: http://www.ct.gov/deep
Description:
Abstract:
Connecticut and Vicinity Town Boundary Line includes State, County, and Town boundaries for Connecticut and nearby portions of Massachusetts, New Jersey, New York and Rhode Island. The data layer was created by extracting boundary line features and polygon attribute information from the individual 1:24,000-scale or 1:25,000-scale data sources produced by the respective State governments. These state-level data sources were either based directly on Digital Line Graph (DLG) files produced by the U.S. Geological Survey or created by State governmental agencies that digitized and attributed town boundaries published on the 1:24,000-scale USGS topographic quadrangle maps. This information does not depict official state, county and town boundaries established by the respective state and municipal governments. It may contain some boundary line and county and town name errors for states other than Connecticut.
Purpose:
Connecticut and Vicinity Town Boundary data are intended for geographic display of state, county and town (municipal) boundaries at statewide and regional levels. Use it to map and label towns on a map. These data are derived from Northeastern United States Political Boundary Master layer.

This information should be displayed and analyzed at scales appropriate for 1:24,000-scale data. The State of Connecticut, Department of Environmental Protection (CTDEP) assembled this regional data layer using data from other states in order to create a single, seamless representation of political boundaries within the vicinity of Connecticut that could be easily incorporated into mapping applications as background information. More accurate and up-to-date information may be available from individual State government Geographic Information System (GIS) offices. Not intended for maps printed at map scales greater or more detailed than 1:24,000 scale (1 inch = 2,000 feet.)
Supplemental_Information:
In 2006, the State of Connecticut, Department of Environmental Protection developed automated procedures to systematically maintain feature topology and attribute integrity for a set of related political boundary data for Northeastern United States in ArcInfo coverage format. These data layers include the following ArcInfo coverages: Northeastern United States Political Boundary Master (NORTHEASTM), Northeastern United States State Boundaries (NORTHEASTSTAT), Northeastern United States County Boundaries, (NORTHEASTCNTY), and Northeastern United States Town Boundaries (NORTHEASTTOWN). Automated procedures were developed using ArcInfo Workstation 9.1 software and the Arc Macro Language (AML) as a scripting environment to programmatically derive all layers from the Northeastern United States Political Boundary Master layer (NORTHEASTM) by merging adjacent polygon features as a result of dissolving adjacent features based on similar attribute values. For example, the Northeastern United States State Boundaries (NORTHEASTSTAT) is a produced as a result of first deleting polygon attributes from a copy of the Northeastern United States Political Boundary Master (NORTHEASTM) that do not describe state level information (such as TOWN_COD and CNTY_COD) and subsequently dissolving these polygon features on the remaining attributes (such as STATE_COD). This results in merging all adjacent town polygon features that are members of the same State into single polygon features for the states of Connecticut, Maine, Massachusetts, New Hampshire, New York, New Jersey, Rhode Island, and Vermont.
Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 2006
Currentness_Reference:
publication date
Status:
Progress: Complete
Maintenance_and_Update_Frequency: None planned
Spatial_Domain:
Bounding_Coordinates:
West_Bounding_Coordinate: -74.122391
East_Bounding_Coordinate: -71.125590
North_Bounding_Coordinate: 42.614413
South_Bounding_Coordinate: 40.540858
Keywords:
Theme:
Theme_Keyword_Thesaurus: ISO 19115 Topic Category
Theme_Keyword: boundaries
Place:
Place_Keyword_Thesaurus: U.S. Department of Commerce, 1987, Codes for the Identification of the States, the District of Columbia and the Outlying Areas of The United States, and Associated Areas (Federal Information Processing Standard 5-2): Washington, DC, National Institute of Standards and Technology.
Place_Keyword: Connecticut
Place_Keyword: Massachusetts
Place_Keyword: New Jersey
Place_Keyword: New York
Place_Keyword: Rhode Island
Place_Keyword: CT
Place_Keyword: MA
Place_Keyword: NJ
Place_Keyword: NY
Place_Keyword: RI
Place:
Place_Keyword_Thesaurus: U.S. Department of Commerce, 1995, Countries, Dependencies, Areas of Special Sovereignty, and Their Principal Administrative Divisions (Federal Information Processing Standard (FIPS) 10-4): Washington, D.C., National Institute of Standards and Technology.
Place_Keyword: United States of America
Place_Keyword: USA
Access_Constraints: None. The data is in the public domain and may be redistributed.
Use_Constraints:
No restrictions or legal prerequisites for using the data. The data is suitable for use at appropriate scale, and is not intended for maps printed at scales greater or more detailed than 1:24,000 scale (1 inch = 2,000 feet). Although this data set  has been used by the State of Connecticut, Department of Environmental Protection, no warranty, expressed or implied, is made by the State of Connecticut, Department of Environmental Protection as to the accuracy of the data and or related materials.  The act of distribution shall not constitute any such warranty, and no responsibility is assumed by the State of Connecticut, Department of Environmental Protection in the use of these data or related materials. The user assumes the entire risk related to the use of these data. Once the data is distributed to the user, modifications made to the data by the user should be noted in the metadata. When printing this data on a map or using it in a software application, analysis, or report, please acknowledge the State of Connecticut, Department of Environmental Protection as the data publisher. For example, include the following data source description when printing this layer on a map: Political Boundaries - From the Northeastern United States Town Boundary layer, published by CT DEP. Source map scale is 1:24,000.
Point_of_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howie Sternberg
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106-5127
Country: USA
Contact_Voice_Telephone: 860-424-3540
Contact_Facsimile_Telephone: 860-424-4058
Contact_Electronic_Mail_Address: dep.gisdata@ct.gov
Hours_of_Service: Monday to Friday, 08:30 to 16:30 Eastern Standard Time
Browse_Graphic:
Browse_Graphic_File_Name: http://www.cteco.uconn.edu/metadata/dep/browsegraphic/connecticutvicinitytownfullview.gif
Browse_Graphic_File_Description:
Full view of Connecticut and Vicinity Town polygon features
Browse_Graphic_File_Type: GIF
Browse_Graphic:
Browse_Graphic_File_Name: http://www.cteco.uconn.edu/metadata/dep/browsegraphic/connecticutvicinitytownctview.gif
Browse_Graphic_File_Description:
View of Connecticut and Vicinity Town Boundary polygon and line features for greater Connecticut
Browse_Graphic_File_Type: GIF
Browse_Graphic:
Browse_Graphic_File_Name: http://www.cteco.uconn.edu/metadata/dep/browsegraphic/connecticutvicinitytowndetailview.gif
Browse_Graphic_File_Description:

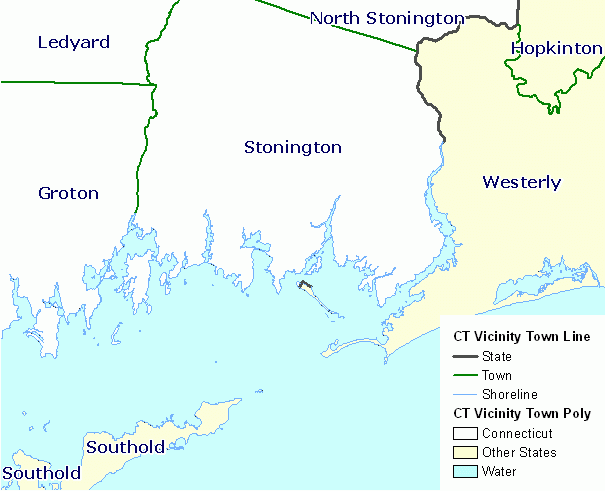

Detail view of Connecticut and Vicinity Town polygon and line features. Note ability to shade in Connecticut towns differently than out-of-state towns along with labeling all towns and differentiating state and town boundaries.
Browse_Graphic_File_Type: GIF
Native_Data_Set_Environment:
These data are maintained by the State of Connecticut using ArcGIS software developed by Environmental Systems Research Institute (ESRI) in a Microsoft Windows operating system environment.
Back to Top
Data_Quality_Information:
Attribute_Accuracy:
Attribute_Accuracy_Report:
All attributes have valid values. These attribute values are directly based on or derived from attribute and or spatial (feature location) information supplied by the respective data sources. This information does not depict official boundaries established by the respective state and municipal governments. It may contain some state, county and town boundary line errors for all states and town name errors for all states other than Connecticut.
Logical_Consistency_Report:
Polygon features conform to the following topological rules. Polygons are single part. There are no duplicate polygons. Polygons do not self overlap. Polygons do not overlap other polygons. Polygons are bound by lines. Line features conform to the following topological rules. Lines are single part. There are no duplicate lines. Lines do not self overlap. Lines do not overlap other lines. Lines intersect only at nodes, and nodes anchor the ends of all lines. Lines do not overshoot or undershoot other lines they are supposed to meet and intersect. The tests of logical consistency were performed by the State of Connecticut using ESRI ArcInfo software to maintain feature topology in ArcInfo coverage format. The data is topologically clean. The ArcInfo Clean function was repeatedly used following edits to verify topology and enforce a minimum distance between vertices of 4 feet (fuzzy tolerance) and a minimum allowed overshoot length of 10 feet (dangle length).
Completeness_Report:
This map layer includes boundaries for Connecticut, Massachusetts, Maine, New Hampshire, New Jersey, New York, Rhode Island, and Vermont. Data completeness reflected by the content of the original data sources.
Positional_Accuracy:
Horizontal_Positional_Accuracy:
Horizontal_Positional_Accuracy_Report:
The horizontal positional accuracy of this data is assumed to approximate the United States National Map Accuracy Standards for 1:24,000 scale maps. According to this standard, not more than 10 percent of the locations tested are to be in error by more than 1/50 inch (40 feet) measured on the publication scale of a USGS 7.5 minute topographic quadrangle map.

However, while appending the data sources together from the respective states, the compiler noticed variations in feature content definition within each data source (most notably along the coastline) and diffenences in digitizing quality of features along the boundaries between different states where such comparisons could be made. Some state boundaries were not as coincident as expected and some were more smoothy digitized than others, refecting differences in their data sources and automation procedures. For example, some states based town boundary information on 1:24,000-Scale Digital Line Graphs and Quadrangle Map files from the USGS and others digitized this information directly from unstable paper copies of USGS 1:24,000-scale Topographic quadrangle maps.
Lineage:
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data editor and publisher)
Originator: U.S. Geological Survey, National Mapping Program (data compiler)
Publication_Date: 19940101
Title:
Connecticut Towns
Edition: 2005
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Hartford, Connecticut, USA
Publisher: State of Connecticut, Department of Environmental Protection
Other_Citation_Details:
The USGS is the collector of the data (compiler). The State of Connecticut, Department of Environmental Protection is the creator and maintainer of the data layer (editor) and producer (publisher) of this information for use. The 2005 Edition essentially includes the same set of geographic features published in 1994. However, the 2005 Edition differs from information published in 1994 primarily as a result of minor corrections and improvements to feature geometry and feature attribute information. Some feature attribute information (data fields) have been slightly modified and made easier to use. This layer includes information that is relatively static and does not change over time. Data is not updated. Data compiled at 1:24,000 scale.
Online_Linkage: http://www.ct.gov/deep
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 1969
Ending_Date: 1986
Source_Currentness_Reference:
Publication dates of the USGS 7.5 minute topographic quadrangle maps for the State of Connecticut through 1984.
Source_Citation_Abbreviation:
Source 1 - TOWN (Connecticut)
Source_Contribution:
Town is a 1:24,000-scale, polygon and line feature-based layer that includes state, county and town (municipal) boundary features depicted on the U.S. Geological Survey (USGS) 7.5 minute topographic quadrangle maps for the State of Connecticut. This layer only includes information for Connecticut. Line features include State, county, and town (municipal) boundaries. Polygon features depict the geographic areas for individual towns (municipalities). Data is in ArcInfo coverage format in the Connecticut State Plane Coordinate System of 1983 (NAD 83). Map units are in feet.
Source_Information:
Source_Citation:
Citation_Information:
Originator: Maine Office of Geographic Information Systems (MEGIS)
Publication_Date: 20050622
Title:
metwp24_06302005
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Augusta ME
Publisher: Maine Office of Geographic Information Systems (MEGIS)
Online_Linkage: http://megis.maine.gov/catalog/
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 19480101
Ending_Date: 20050622
Source_Currentness_Reference:
source dates
Source_Citation_Abbreviation:
Source 2 - METWP24_06302005 (Maine)
Source_Contribution:
METWP24 depicts political boundaries, common town names, and geocodes for Maine at 1:24,000 scale. The coverage was created from USGS, 7.5 minute map series, town boundaries. The Maine GIS base layer COAST, which contains Maine's coastal Mean High Water (MHW) mark and Maine islands, was used in the development of METWP24. Polygon data was originally obtained in ESRI Shapefile format in Universal Transverse Mercator 1983, Zone 19, map units meters. The name of the shapefile is metwp24p_06302005.shp.
Source_Information:
Source_Citation:
Citation_Information:
Originator: MassGIS
Publication_Date: 2002
Title:
Communtity Boundaries (Towns)
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Boston, Massachussets, USA
Publisher: MassGIS
Online_Linkage: http://www.mass.gov/mgis/
Source_Scale_Denominator: 25000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 2002
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 3 - TOWNS.E00 (Massachusetts)
Source_Contribution:
The political boundary datalayer is a 1:25,000 scale datalayer containing the boundaries of the 351 communities (cities and towns) in Massachusetts. The seaward boundary of coastal communities has been defined at mean high water in this datalayer. Data is in ArcInfo coverage format in the Massachusetts State Plane Coordinate System of 1983 (NAD 83). Map units are in meters.
Source_Information:
Source_Citation:
Citation_Information:
Originator: Complex Systems Research Center, University of New Hampshire
Publication_Date: 19920101
Title:
New Hampshire Political Boundaries at 1:24,000 Scale
Edition: One
Publication_Information:
Publication_Place: Durham, New Hampshire, USA
Publisher: Systems Research Center, University of New Hampshire
Other_Citation_Details:
None
Online_Linkage: http://www.granit.sr.unh.edu/
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Range_of_Dates/Times:
Beginning_Date: 19530101
Ending_Date: 19900101
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 4 - PB.E00 (New Hampshire)
Source_Contribution:
The New Hampshire Political Boundaries (PB) coverage provides a digital representation of corporate boundaries at the town, county, and state level. It was derived from the 1:24,000-scale USGS Digital Line Graphs (DLGs). Data is in ArcInfo coverage format in the New Hampshire State Plane Coordinate System of 1983 (NAD 83). Map units are in feet.
Source_Information:
Source_Citation:
Citation_Information:
Originator: NJ Department of Environmental Protection (NJDEP)
Originator: Office of Information Resources Management (OIRM)
Originator: Bureau of Geographic Information Systems (BGIS)
Publication_Date: 20050817
Title:
NJDEP Municipality Boundaries for the State of New Jersey (Clipped to Coast)
Edition: 20050817
Publication_Information:
Publication_Place: Trenton, New Jersey, USA
Publisher: New Jersey Department of Environmental Protection (NJDEP)
Online_Linkage: http://www.nj.gov/dep/gis/
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 2004032
Source_Currentness_Reference:
ground condition
Source_Citation_Abbreviation:
Source 5 - MUNCOAST.SHP (New Jersey)
Source_Contribution:
Municipal boundaries in New Jersey were gathered from USGS topoquads and other sources in 1987. Since that time, updates to the data have been limited to noting consolidations of boundaries. The scale of the original data varies, relying primarily on 1:24,000 topoquads. Polygon feature data is in ESRI Shapefile format in the State Plane Coordinate System, North American Datum of 1983 (NAD 83), Zone 2900. Map units are in feet.
Source_Information:
Source_Citation:
Citation_Information:
Originator: Unknown
Publication_Date: Unknown
Title:
New York State Municipalities
Publication_Information:
Publication_Place: Unknown
Publisher: Unknown
Online_Linkage: http://giswww.westchestergov.com/
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 20060703
Source_Currentness_Reference:
Unknown
Source_Citation_Abbreviation:
Source 6 - NYSMUN.E00 (New York)
Source_Contribution:
The GIS program for Westchester County, New York provided this data file in response to an inquiry for a 1:24,000-scale town boundary layer for the State of New York. No metadata included with the nysmun.e00 data source. Includes state, county, city, town, and village political boundaries. Data is assumed to be 1:24,000-scale. The SWIS Code identitified polygon features down to the village level. Data is in ArcInfo coverage format in the New York State Plane Coordinate System of 1983 (NAD 83), Zone 4801. Map units are in feet.
Source_Information:
Source_Citation:
Citation_Information:
Originator: Rhode Island Geograhic Information System (RIGIS)
Publication_Date: 1989
Title:
esri-state-ritownp
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Providence, Rhode Island, 02908-5872, USA
Publisher: Rhode Island Geograhic Information System (RIGIS)
Online_Linkage: http://www.edc.uri.edu/rigis/
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 19890701
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 7 - S44BTP88.E00 (Rhode Island)
Source_Contribution:
State, county, city,and town political boundarie for Rhode Island with name and id coded attributes and city and town name annotation.  Data is in ArcInfo coverage format in the Rhode Island State Plane Coordinate System of 1983 (NAD 83), Zone 5176. Map units are in feet.
Source_Information:
Source_Citation:
Citation_Information:
Originator: Vermont Center for Geograhic Information (VGI)
Publication_Date: 20051117
Title:
BoundaryOther_BNDHASH
Geospatial_Data_Presentation_Form: vector digital data
Series_Information:
Series_Name: Vermont village, town, county, state and RPC boundaries, from best available sources
Issue_Identification: 2005A
Publication_Information:
Publication_Place: Waterbury, Vermont, 05676, USA
Publisher: Vermont Center for Geograhic Information, GIS Database Administrator
Online_Linkage: http://www.vcgi.org
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 20051117
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 8 - BNDHASH.E00 (Vermont)
Source_Contribution:
The BNDHASH data layer depicts Vermont villages, towns, counties, Regional Planning Commissions (RPC), State administrative, and LEPC (Local Emergency Planning Committee) boundaries. It is a mosaic of generally 'best available' boundaries from various data sources. Data is in ArcInfo coverage format in the Vermont State Plane Coordinate System of 1983 (NAD 83). Map units are in meters. BNDHASH includes the ArcInfo coverage region subclasses. The REGION.TOWNS subclass includes Vermont towns and was used as the data source for Vermont.
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher)
Originator: U.S. Geological Survey, National Mapping Program (data compiler)
Originator: MassGIS (data compiler and publisher)
Originator: Maine Office of Geographic Information Systems (data compiler and publisher)
Originator: Complex Systems Research Center, University of New Hampshire (data compiler and publisher)
Originator: New Jersey Department of Environmental Protection (data compiler and publisher)
Originator: State of New York (data compiler and publisher)
Originator: Rhode Island Geograhic Information System (data compiler and publisher)
Originator: Vermont Center for Geograhic Information (data compiler and publisher)
Publication_Date: 2006
Title:
Northeastern United States Political Boundary Master
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Hartford, Connecticut, USA
Publisher: State of Connecticut, Department of Environmentmental Protection
Online_Linkage: http://www.ct.gov/deep
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 20060703
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 9 - NORTHEASTM (Northeastern United States Political Boundary Master)
Source_Contribution:
NORTHEASTM is a 1:24,000-scale, polygon and line feature-based layer that includes state, county, town (municipal), and some village boundary features for the States of Connecticut, Massachusetts, Maine, New Hampshire, New Jersey, New York, Rhode Island, and Vermont. Line features include state, county, town (municipal), and village  boundaries (primarily for New York). Polygon features are intended to depict the geographic areas for individual towns (municipalities) so that they can be aggregated up and combined to form county and state polygon features in derived data sets. Data is in ArcInfo coverage format in the Connecticut State Plane Coordinate System of 1983 (NAD 83). Map units are in feet. This information does not depict official state, county and town boundaries established by the respective state and municipal governments.
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher)
Originator: U.S. Geological Survey, National Mapping Program (data compiler)
Originator: MassGIS (data compiler and publisher)
Originator: Maine Office of Geographic Information Systems (data compiler and publisher)
Originator: Complex Systems Research Center, University of New Hampshire (data compiler and publisher)
Originator: New Jersey Department of Environmental Protection (data compiler and publisher)
Originator: State of New York (data compiler and publisher)
Originator: Rhode Island Geograhic Information System (data compiler and publisher)
Originator: Vermont Center for Geograhic Information (data compiler and publisher)
Publication_Date: 2006
Title:
Northeastern United States Town Boundary
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Hartford, Connecticut, USA
Publisher: State of Connecticut, Department of Environmentmental Protection
Online_Linkage: http://www.ct.gov/deep
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 20060703
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 10 - NORTHEASTTOWN (Northeastern United States Town Boundary)
Source_Contribution:
NORTHEASTTOWN is a 1:24,000-scale, polygon and line feature-based layer that includes state, county, and town (municipal) boundary features for the States of Connecticut, Massachusetts, Maine, New Hampshire, New Jersey, New York, Rhode Island, and Vermont. Line features include state, county, and town (municipal) boundaries. Polygon features are intended to depict the geographic areas for individual towns (municipalities) for display as background information on a map or in an interactive mapping application. Data is in ArcInfo coverage format in the Connecticut State Plane Coordinate System of 1983 (NAD 83). Map units are in feet. This information does not depict official state, county and town boundaries established by the respective state and municipal governments.
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher)
Originator: U.S. Geological Survey, National Mapping Program (data compiler)
Originator: MassGIS (data compiler and publisher)
Originator: Maine Office of Geographic Information Systems (data compiler and publisher)
Originator: Complex Systems Research Center, University of New Hampshire (data compiler and publisher)
Originator: New Jersey Department of Environmental Protection (data compiler and publisher)
Originator: State of New York (data compiler and publisher)
Originator: Rhode Island Geograhic Information System (data compiler and publisher)
Originator: Vermont Center for Geograhic Information (data compiler and publisher)
Publication_Date: 20060703
Title:
Northeastern United States Town Boundary Line
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Hartford, Connecticut, USA
Publisher: State of Connecticut, Department of Environmentmental Protection
Online_Linkage: http://www.ct.gov/deep
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 20060703
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 11 - Northeast_Town_Line.shp
Source_Contribution:
Northeast_Town_Line.shp is a 1:24,000-scale line feature-based layer that includes state, county and town boundary information for the States of Connecticut, Massachusetts, Maine, New Hampshire, New Jersey, New York, Rhode Island, and Vermont. Northeast_Town_Line.shp is in Shapefile format.
Source_Information:
Source_Citation:
Citation_Information:
Originator: State of Connecticut, Department of Environmental Protection (data compiler, editor and publisher)
Originator: U.S. Geological Survey, National Mapping Program (data compiler)
Originator: MassGIS (data compiler and publisher)
Originator: Maine Office of Geographic Information Systems (data compiler and publisher)
Originator: Complex Systems Research Center, University of New Hampshire (data compiler and publisher)
Originator: New Jersey Department of Environmental Protection (data compiler and publisher)
Originator: State of New York (data compiler and publisher)
Originator: Rhode Island Geograhic Information System (data compiler and publisher)
Originator: Vermont Center for Geograhic Information (data compiler and publisher)
Publication_Date: 20060703
Title:
Northeastern United States Town Boundary Line
Geospatial_Data_Presentation_Form: vector digital data
Publication_Information:
Publication_Place: Hartford, Connecticut, USA
Publisher: State of Connecticut, Department of Environmentmental Protection
Online_Linkage: http://www.ct.gov/deep
Source_Scale_Denominator: 24000
Type_of_Source_Media: disc
Source_Time_Period_of_Content:
Time_Period_Information:
Single_Date/Time:
Calendar_Date: 20060703
Source_Currentness_Reference:
publication date
Source_Citation_Abbreviation:
Source 12 - Northeast_Town_Line
Source_Contribution:
Northeast_Town_Line is a 1:24,000-scale line feature-based layer that includes state, county and town boundary information for the States of Connecticut, Massachusetts, Maine, New Hampshire, New Jersey, New York, Rhode Island, and Vermont. Northeast_Town_Line is in GeoDatabase Feature Class format.
Process_Step:
Process_Description:
Create NORTHEASTM (Northeast United States Political Boundary Master) - The following steps describe how an ArcInfo Coverage named NORTHEASTM was created using data sources from the states of Connecticut, Maine, Massachusetts, New York, New Jersey, Rhode Island and Vermont. All data sources were downloaded directly from State GIS Web sites with the exception of data for the State of New York, which was provide by the GIS Program for Westchester County, New York. Each data source included town (municipal or township) boundary line features compiled at 1:24,000 scale (1 inch = 2,000 feet) with the exception of data from Massachusetts, which was compiled at 1:25,000 scale. Enclosing town polygon features along the shoreline, coastline features were connected to town boundary line features in each state data source.

1.  Convert Data Sources to Connecticut State Coordinate System - All data sources were converted to ArcInfo Coverage format, if necessary. Each state data source was subsequently projected to the Connecticut State Plane Coordinate System, North American Datum of 1983 (NAD 83), with map units set to feet. Following the projection, polygon and line ArcInfo Coverage feature topology was created for each state data source using the ArcInfo BUILD command. When necessary to successfully complete the ArcInfo Coverage BUILD process, the ArcInfo CLEAN command was used with DANGLE and FUZZY tolerances of 10 and 4 feet, respectively.

2. Edit Geometry of State Data Source Line Features - Line features from each state data source were copied to a separate ArcInfo Coverage for each state. Line feature geometry in each line feature state data source was visually inspected and political boundary line features extending into the waters of the Atlantic Ocean, Long Island Sound, and Gulf of Maine were deleted. Coastline features that enclosed towns along the coast and offshore islands were retained. The compiler observed inconsistencies between the individual state data sources relative to the inclusion of small coastal islands and the extent to which the coastline was defined by the (upstream) shorelines of small double line streams that flow into coastal waters. Some states included all islands along the coast or incorporated a hydrography-based shoreline that continued further upstream than in other states. These unique characteristics were preserved in each state data source with the exception of portions of the New York and Rhode Island shoreline data adjacent to Connecticut that were replaced with more accurate and complete line feature geometry from Connecticut. Otherwise, the compiler did not re-digitize or redefine coastline or island shoreline features in order to add all missing island features or apply a consistent shoreline definition across all states, for example. Each line feature data source was further visually inspected and, where necessary, feature overshoots, undershoots, and duplicates were corrected in order to ensure that all line features would properly connect to form town polygon feature boundaries in a step 8.  These polygons would form land-based town areas and islands along the coast that are parts to these towns.

3. Edit Attributes of State Data Source Line Features - An attribute named  DATA_SRC was added (and populated with values of  "CT", "ME", "MA", "NJ", "NY", "RI", and "VT") to all features in each line feature state data source in order to retain the source of the geometry of each line feature once all state data sources combined in step 8. All other line feature attributes were deleted in each state data source. Once all state data sources are combined in step 8, a consistent attribution of state, county and town boundaries is later established in step 9.

4. Edit Geometry of State Data Source Label Points - Polygon label point features from each state data source were copied to a separate ArcInfo Coverage for each state. In each label point state data source, the location of label points was visually compared to the line features in the corresponding line feature state data source produced in step 2. Any label point that was not located inside a set of enclosing line features (to be used to form town polygon features) was deleted. These label points will be used to attribute the polygon features in step 8. In general, label points were deleted from the Connecticut and Maine data sources where political boundary line features extending into coastal waters were deleted in step 2. These label points were removed because they described areas of water associated with individual towns along the coast. Label points inside the shorelines of coastal islands were retained. Other visual checks were performed to ensure that only one label point was located within each set of enclosing line features, including islands along the coast. Each label point included town and county information as attributed by the individual state.

5. Edit Attributes of State Data Source Label Points - An attribute named  STATE_COD was added (and populated with values of  "CT", "ME", "MA", "NJ", "NY", "RI", and "VT") to each label point state data source in order to distinguish between States once all state data sources are combined in step 8. All label point state data sources included attributes corresponding to town (or village) numbers and town names. The compiler considered attributing the town polygon features using the FIPS55 codes available at http://geonames.usgs.gov/fips55.html, but FIPS55 code values could not be easily matched to the town numbers and names in all of the state data sources so this idea was dropped. Consequently, the compiler established an alternative approach to encoding town and county designations by mapping (transferring) original attribute values included with individual state data sources to a set common data fields. The compiler added the following common fields to each label point state data source: CNTY_FIELD, CNTY_COD, CNTY_NAME, TOWN_FIELD, TOWN_COD, and TOWN_NAME. These attributes record the field names and values used by the different states for attributing counties and towns. They establish a cross reference back to the attribution in the original data sources. For example, The TOWN_FIELD stores the name of the field used by the state to encode a town, municipality or township number. So for Connecticut, Maine, Massachusetts, New Jersey, New York, New Hampshire, and Vermont, this field is populated with the following strings: "TOWN_NO", "GEOCODENUM", "TOWN-ID", "FIPS", "KEY", "SWIS", "OSP", and "FIPS6". The TOWN_COD field was subsequently populated with the numeric values stored in these fields. And the TOWN_NAME attribute was populated from text values stored in the field used by the state to encode a town, municipality or township name. For example, the attributes for the label point for the town of Andover, Connecticut are STATE_COD="CT", TOWN_FIELD="TOWN_NO", TOWN_COD=1, and TOWN_NAME="Andover"; attributes for the town of Ansonia, Connecticut are STATE_COD="CT", TOWN_FIELD="TOWN_NO", TOWN_COD=2, and TOWN_NAME="Ansonia"; attributes for the town of Abington, Massachusetts are STATE_COD="MA", TOWN_FIELD="TOWN-ID", TOWN_COD=1, and TOWN_NAME="Abington"; attributes for the town of Barrington, Rhode Island are STATE_COD="RI", TOWN_FIELD="OSP", TOWN_COD=1, and TOWN_NAME="Barrington"; and so on. CNTY_FIELD, CNTY_COD, and CNTY_NAME attributes were similarly populated. The VILLAGE attribute was added to preserve the names of villages and borough features included with data from New York. Once these state, county and town attribute values were transferred to the set of common fields, all other attributes in each label point state data source were deleted, resulting in an identical attribute schema for all label point state data sources.

6. Append Line Feature State Data Sources - Depending on the individual state, town boundary feature geometry was either based on 1:24,000-Scale Digital Line Graphs (DLG) and Quadrangle Map files from the USGS or digitized by states from either stable-base Mylar or unstable paper copies of USGS 1:24,000-scale (or 1:25,000-scale) Topographic Quadrangle maps. Consequently, line feature spatial accuracy varies from state to state and does always closely match along state boundaries. In order to append line feature data from seven states together, it was necessary to establish rules for determining which state boundary to use. First, all data would be matched to Connecticut for two reasons - (1) it is based on 1:24,000-scale DLG data from the USGS, the best digital data source for 1:24,000-scale political boundaries, and (2) Connecticut DEP desired a regional data that with boundary information for Connecticut that was consistent with information currently in use. It was also decided that the state boundary line geometry between all other state boundaries was to be based on a complete set of line features from the most accurate state data source. The state boundaries to preserve (i.e. match or snap to) were decided upon after reviewing the data source metadata and visually comparing state data source line feature geometry along state boundaries and choosing the more accurate line work. Beginning with a copy of  the data from Connecticut, individual line feature data state data sources were appended (loaded) one at time and matched to the adjacent state according to the following feature matching rules - Massachusetts was matched to Connecticut, Massachusetts was matched to Rhode Island, Massachusetts was matched to New Hampshire, Massachusetts was matched to New York, New Hampshire was matched to Maine, New York was matched to Connecticut, New York was matched to New Jersey, Rhode Island was matched to Connecticut, Vermont was matched to Massachusetts, Vermont was matched to New York, and Vermont was matched to New Hampshire. For example, when Massachusetts was matched to Connecticut, all line features from the Connecticut data source were preserved, line features from the Massachusetts data source defining the CT-MA state boundary were deleted, and all (dangling and overshooting) municipal boundary line features from the Massachusetts data source extending towards Connecticut were connected to CT-MA state boundary line features from the Connecticut data source. Note, symbolizing line features on the DATA_SRC attribute visually depicts the results of matching the seven state data sources together. Once all line feature state data sources were loaded into a single ArcInfo Coverage, they were ready to form town polygon feature boundaries for the entire region in step 8.

7. Append Label Point Feature State Data Sources - All label point state data sources were appended into a single ArcInfo, ready to be used for attributing town polygon features for the entire region in step 8.

8. Combine Data Source Line and Label Point Features - Line features and label points in the two ArcInfo Coverages created in steps 6 and 7 were combined into a third ArcInfo Coverage. ArcInfo Coverage polygon and line feature topology was established using the ArcInfo CLEAN command with DANGLE and FUZZY tolerances of 10 and 4 feet, respectively. This process generated polygon features from the line features and attributed each polygon with information from the (one) label point feature located inside each polygon. For cartographic purposes, an additional attribute named LAND_CLASS was added to polygon features and populated with values of either "Land" or "Water" to distinguish between areas of land and water both on and offshore. Note, some state data sources included a few miscellaneous polygon features representing lakes, ponds, bays and coves. An additional polygon feature was manually added (digitized) to depict a large area of water off the coast of Connecticut, Maine, Massachusetts, New Jersey, New York, and Rhode Island. For map labeling purposes, an attribute named LABEL_FLAG was added to polygon features to flag town polygon features considered large and significant enough in size to be labeled on a map with town names. Polygons designated for labeling were assigned LABEL_FLAG values equal to "True", whereas small island polygons along coast, not typically labeled with town names, were assigned LABEL_FLAG values equal to "False".

9. Attribute Line Features -  For cartographic purposes, a line feature attribute named BOUNDARY was added and attributed with values of "State", "County", "Town", "Village", "Shoreline" and "Closure Line" using a combination of polygon and line feature topology relationships and manual editing techniques to populate the field. State, and County boundaries were programmatically identified and attributed by comparing the ArcInfo Coverage topological relationships of adjacent polygon attributes. For example, a single line feature between (on the left and right side of the line of) two town poygon features in different states is encoded as a state boundary line feature. A line feature that is not a state boundary line feature between two town polygon features in different counties is encoded as a county boundary feature, and so on.
Source_Used_Citation_Abbreviation:
Source 1 - TOWN (Connecticut)
Source_Used_Citation_Abbreviation:
Source 2 - METWP24_06302005 (Maine)
Source_Used_Citation_Abbreviation:
Source 3 - TOWNS.E00 (Massachusetts)
Source_Used_Citation_Abbreviation:
Source 4 - PB.E00 (New Hampshire)
Source_Used_Citation_Abbreviation:
Source 5 - MUNCOAST.SHP (New Jersey)
Source_Used_Citation_Abbreviation:
Source 6 - NYSMUN.E00 (New York)
Source_Used_Citation_Abbreviation:
Source 7 - S44BTP88.E00 (Rhode Island)
Source_Used_Citation_Abbreviation:
Source 8 - BNDHASH.E00 (Vermont)
Process_Date: 20060703
Source_Produced_Citation_Abbreviation:
Source 9 - NORTHEASTM (Northeastern United States Political Boundary Master)
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howie Sternberg
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106
Country: USA
Contact_Voice_Telephone: 860-424-3540
Process_Step:
Process_Description:
Create NORTHEASTTOWN (Northeastern United States Town Boundary - The automated process for creating (deriving) the Northeastern United States Town Boundary layer from the Northeastern United States Political Boundary Master layer is documented in an Arc Macro Language (AML) script named MAKENORTHEASTCOVER.AML for the political and administrative boundary category of data for the State of Connecticut, Department of Environmental Protection. The MAKENORTHEASTCOVER.AML creates the Northeastern United States Town Boundary layer by extracting and processing the necessary features from the Northeastern United States Political Boundary Master layer. The following describes the steps undertake by the automated process to create the NORTHEASTTOWN ArcInfo Coverage. First, the following polygon attributes were deleted from a copy of the NORTHEASTM ArcInfo Coverage so that all remaining attributes only described state, county, and town-level information: TOWN_COD, VILLAGE, and UNIQUEID. Note, the TOWN_COD field was removed because it identified VILLAGE entities in data from New York and possibly New Jersey. Second, polygon and line features were merged (dissolved and unsplit) based on similar attribute values using the ArcInfo Dissolve command with the NET option (argument). As a result, previously adjacent (village) polygons were combined to form larger town polygon features. Third, the following polygon feature attributes were added and populated with values for classifying, highlighting and differentiating polygon features in one state differently from all other states: CT_LEGEND, MA_LEGEND, ME_LEGEND, NH_LEGEND, NJ_LEGEND NY_LEGEND, RI_LEGEND, and VT_LEGEND. These attributes were added for cartographic purposes. Fourth, the STATE_NAME field, which stores state names, was added and populated to complement the STATE_COD attribute. Fifth, added the CT_LABEL_Y and CT_LABEL_N polygon attributes in order to easily label all Connecticut towns or all but Connecticut towns with their corresponding town name without using the LABEL_FLAG field to query for the appropriate features to label with the MAP_LABEL attribute values, which is a slower technique. Sixth, added and populated the line attribute named LEGEND, which classifies county boundaries as town boundaries and provides a simpler classification of boundary features than the BOUNDARY attribute. The name of the resulting ArcInfo Coverage created by this automated process is NORTHEASTTOWN.
Source_Used_Citation_Abbreviation:
Source 9 - NORTHEASTM (Northeastern United States Political Boundary Master)
Process_Date: 20060627
Source_Produced_Citation_Abbreviation:
Source 10 - NORTHEASTTOWN (Northeastern United States Town Boundary)
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howie Sternberg
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106
Country: USA
Contact_Voice_Telephone: 860-424-3540
Process_Step:
Process_Description:
Export to Shapefile format - Converted line feature data from an ArcInfo coverage named NORTEASTTOWN to a Shapefile named Northeast_Town_Line.shp. Excluded the FNODE#, TNODE#, LPOLY#, RPOLY#, LENGTH, NORTHEASTTOWN#, NORTHEASTTOWN-ID attributes from the Shapefile because their values are only maintained by ArcInfo software with spatial data that is ArcInfo coverage format. Excludes line features that outlined open water areas encoded with BOUNDARY = "Closure Line".
Source_Used_Citation_Abbreviation:
Source 10 - NORTHEASTTOWN (Northeastern United States Town Boundary)
Process_Date: 20060627
Source_Produced_Citation_Abbreviation:
Source 11 - Northeast_Town_Line.shp
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protections
Contact_Person: Howie Sternberg
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106
Country: USA
Contact_Voice_Telephone: 860-424-3540
Process_Step:
Process_Description:
Convert to GeoDatabase Feature Class format - Defined new Feature Class named Northeast_Town_Line; and imported the attribute definitions, loaded features and imported metadata from Northeast_Town_Line.shp shapefile.

Spatial Reference Properties for Feature Class:

Coordinate System: NAD_1983_StatePlane_Connecticut_FIPS_0600_Feet
XY Domain MinX: -1337538.17925; MaxX: 2957429.11075
XY Domain MinY: -772494.257375; MaxY: 3522473.032625
Precision: 500
Source_Used_Citation_Abbreviation:
Source 11 - Northeast_Town_Line.shp
Process_Date: 20060703
Source_Produced_Citation_Abbreviation:
Source 12 - Northeast_Town_Line
Process_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howie Sternberg
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106
Country: USA
Contact_Voice_Telephone: 860-424-3540
Back to Top
Spatial_Data_Organization_Information:
Indirect_Spatial_Reference_Method:
Includes State code, State name, County code, and County name for the States of Connecticut, Massachusetts, New Jersey, New York, and Rhode Island.
Direct_Spatial_Reference_Method: Vector
Point_and_Vector_Object_Information:
SDTS_Terms_Description:
SDTS_Point_and_Vector_Object_Type: String
Point_and_Vector_Object_Count: 3309
Back to Top
Spatial_Reference_Information:
Horizontal_Coordinate_System_Definition:
Planar:
Map_Projection:
Map_Projection_Name: Lambert Conformal Conic
Lambert_Conformal_Conic:
Lambert Conformal Conic
Standard_Parallel: 41.200000
Standard_Parallel: 41.866667
Longitude_of_Central_Meridian: -72.750000
Latitude_of_Projection_Origin: 40.833333
False_Easting: 999999.999996
False_Northing: 499999.999998
Planar_Coordinate_Information:
Planar_Coordinate_Encoding_Method: coordinate pair
Coordinate_Representation:
Abscissa_Resolution: 0.000250
Ordinate_Resolution: 0.000250
Planar_Distance_Units: survey feet
Geodetic_Model:
Horizontal_Datum_Name: North American Datum of 1983
Ellipsoid_Name: Geodetic Reference System 80
Semi-major_Axis: 6378137.000000
Denominator_of_Flattening_Ratio: 298.257222
Vertical_Coordinate_System_Definition:
Altitude_System_Definition:
Altitude_Resolution: 1.000000
Altitude_Encoding_Method: Explicit elevation coordinate included with horizontal coordinates
Back to Top
Entity_and_Attribute_Information:
Detailed_Description:
Entity_Type:
Entity_Type_Label: Connecticut and Vicinity Town Boundary Line
Entity_Type_Definition:
Includes line features representing State, county, and town (municipal) boundaries; the shoreline; island shorelines; and lines enclosing open water areas along the outer limits of the data extent.
Entity_Type_Definition_Source:
State of Connecticut, Department of Environmental Protection
Attribute:
Attribute_Label: OBJECTID
Attribute_Definition:
Internal feature number.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Sequential unique whole numbers that are automatically generated.
Attribute:
Attribute_Label: BOUNDARY
Attribute_Definition:
Boundary - Type of Political Boundary
Attribute_Definition_Source:
State of Connecticut, Department of Environmental Protection
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: Closure Line
Enumerated_Domain_Value_Definition:
Closure Line - Encloses water polygon features along the outer limits of data extent. Not a political boundary.
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: County
Enumerated_Domain_Value_Definition:
County Boundary - Political boundary between adjacent counties in the same state
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: Shoreline
Enumerated_Domain_Value_Definition:
Shoreline - Outlines water polygon features. Not a political boundary.
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: State
Enumerated_Domain_Value_Definition:
State Boundary - Political boundary between adjacent states
Enumerated_Domain_Value_Definition_Source:
CT DEP
Attribute:
Attribute_Label: LEGEND
Attribute_Definition:
Map Legend - Type of Political Boundary. Line features encoded as County by the BOUNDARY attribute are encoded as Town (boundary) features by the LEGEND attribute in order to make for a simpler map legend.
Attribute_Definition_Source:
State of Connecticut, Department of Environmental Protection
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: Closure Line
Enumerated_Domain_Value_Definition:
Closure Line - Encloses water polygon features along the outer limits of data extent. Not a political boundary.
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: Shoreline
Enumerated_Domain_Value_Definition:
Shoreline - Outlines water polygon features. Not a political boundary.
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: State
Enumerated_Domain_Value_Definition:
State Boundary - Political boundary between adjacent states
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: Town
Enumerated_Domain_Value_Definition:
Town Boundary - Political boundary between adjacent towns in the same state and county
Enumerated_Domain_Value_Definition_Source:
CT DEP
Attribute:
Attribute_Label: DATA_SRC
Attribute_Definition:
Data Source - Identifies the data source used to define the geometry (shape) of the line feature. Refer to list of Data Sources included in this Metadata for detailed description of State data sources used.
Attribute_Definition_Source:
State of Connecticut, Department of Environmental Protection
Attribute_Domain_Values:
Enumerated_Domain:
Enumerated_Domain_Value: 'blank'
Enumerated_Domain_Value_Definition:
No data source
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: CT
Enumerated_Domain_Value_Definition:
Line feature based on data from Connecticut
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: MA
Enumerated_Domain_Value_Definition:
Line feature based on data from Massachusetts
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: NJ
Enumerated_Domain_Value_Definition:
Line feature based on data from New Jersey
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: NY
Enumerated_Domain_Value_Definition:
Line feature based on data from New York
Enumerated_Domain_Value_Definition_Source:
CT DEP
Enumerated_Domain:
Enumerated_Domain_Value: RI
Enumerated_Domain_Value_Definition:
Line feature based on data from Rhode Island
Enumerated_Domain_Value_Definition_Source:
CT DEP
Attribute:
Attribute_Label: SHAPE
Attribute_Definition:
Feature geometry.
Attribute_Definition_Source:
ESRI
Attribute_Domain_Values:
Unrepresentable_Domain:
Coordinates defining the features.
Attribute:
Attribute_Label: SHAPE.len
Overview_Description:
Entity_and_Attribute_Overview:
Attributes identify and describe the geographic areas and state boundaries for the States of Connecticut, Massachusetts, New Jersey, New York, and Rhode Island. Use the BOUNDARY line feature attribute to cartographically represent state boundary lines. Use the LAND_CLASS polygon feature attribute to cartographically distinguish land from water polygon features. Use the STATE_COD, STATE_NAME or MAP_LABEL attributes to label polygon features with state abbreviations or names. Use the LABEL_FLAG attribute to identify polygons large enough to label with state names at larger scales using the MAP_LABEL attribute. Or use the CT_LABEL_Y and CT_LABEL_N attributes to label just the state of Connecticut or all states but Connecticut without querying for the appropriate features and labeling them with the MAP_LABEL values, which is a slower technique. Use the CT_LEGEND polygon attribute to classify and highlight features in Connecticut different from the other states. This dataset includes a large water polygon feature that may impact polygon drawing performance. To improve drawing performance, exclude all water features by using the following expression in a layer definition query: LAND_CLASS = "Land"
Entity_and_Attribute_Detail_Citation:
For additional information describing the data source for Connecticut refer to metadata available for the Connecticut Towns layer at http://www.ct.gov/deep.
Entity_and_Attribute_Detail_Citation:
For additional information describing the data source for Massachussetts refer to metadata available for the Communtity Boundaries (Towns) layer at http://www.mass.gov/mgis/
Entity_and_Attribute_Detail_Citation:
For additional information describing the data source for New Jersey refer to metadata available for the NJDEP Municipality Boundaries for the State of New Jersey (Clipped to Coast) layer at http://www.nj.gov/dep/gis/
Entity_and_Attribute_Detail_Citation:
For additional information describing the data source for New York refer to metadata available for the New York State Municipalities layer at http://giswww.westchestergov.com/
Entity_and_Attribute_Detail_Citation:
For additional information describing the data source for Rhode Island refer to metadata available for the esri-state-ritownp layer at http://www.edc.uri.edu/rigis/
Back to Top
Distribution_Information:
Distributor:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Enviromental Protection
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106-5127
Country: USA
Contact_Voice_Telephone: 860-424-3540
Contact_Facsimile_Telephone: 860-424-4058
Contact_Electronic_Mail_Address: dep.gisdata@ct.gov
Hours_of_Service: Monday to Friday, 08:30 to 16:30 Eastern Standard Time
Resource_Description: Connecticut and Vicinity Town Boundary Line
Distribution_Liability:
Although this data set  has been used by the State of Connecticut, Department of Environmental Protection, no warranty, expressed or implied, is made by the State of Connecticut, Department of Environmental Protection as to the accuracy of the data and or related materials.  The act of distribution shall not constitute any such warranty, and no responsibility is assumed by the State of Connecticut, Department of Environmental Protection in the use of these data or related materials. The user assumes the entire risk related to the use of these data. Once the data is distributed to the user, modifications made to the data by the user should be noted in the metadata.
Standard_Order_Process:
Digital_Form:
Digital_Transfer_Information:
Format_Name: Shapefile, Feature Class
Format_Version_Number: ArcGIS
File_Decompression_Technique: Zip file
Digital_Transfer_Option:
Online_Option:
Computer_Contact_Information:
Network_Address:
Network_Resource_Name: http://www.ct.gov/deep
Fees: An online copy of the data may be accessed without charge.
Custom_Order_Process:
The data distributor does not provide custom GIS analysis or mapping services. Data is available in a standard format and may be converted to other formats, projections, coordinate systems, or selected for specific geographic regions by the party receiving the data.
Technical_Prerequisites:
Geographic information sytem (GIS), computer-aided drawing or other mapping software is necessary to display, view and access the information.
Back to Top
Metadata_Reference_Information:
Metadata_Date: 20111207
Metadata_Contact:
Contact_Information:
Contact_Organization_Primary:
Contact_Organization: State of Connecticut, Department of Environmental Protection
Contact_Person: Howie Sternberg
Contact_Address:
Address_Type: mailing and physical address
Address:
79 Elm Street
City: Hartford
State_or_Province: Connecticut
Postal_Code: 06106-5127
Country: USA
Contact_Voice_Telephone: 860-424-3540
Contact_Facsimile_Telephone: 860-424-4058
Contact_Electronic_Mail_Address: dep.gisdata@ct.gov
Hours_of_Service: Monday to Friday, 08:30 to 16:30 Eastern Standard Time
Metadata_Standard_Name: FGDC Content Standards for Digital Geospatial Metadata
Metadata_Standard_Version: FGDC-STD-001-1998
Metadata_Time_Convention: local time
Metadata_Extensions:
Online_Linkage: http://www.esri.com/metadata/esriprof80.html
Profile_Name: ESRI Metadata Profile
Back to Top
