Worst Case Hurricane Surge Inundation for Connecticut

Frequently-asked questions:


What does this data set describe?

Title:
Worst Case Hurricane Surge Inundation for Connecticut

Abstract:
Worst case Hurricane Surge Inundation areas for category 1 through 4 hurricanes striking the coast of Connecticut. Hurricane surge values were developed by the National Hurricane Center using the SLOSH (Sea Lake and Overland Surge from Hurricanes) Model. This Surge Inundation layer was created by the U.S. Army Corps of Engineers, New England District. Using ArcInfo's Grid extension, LiDAR bare earth elevation data from both the State of Connecticut and FEMA was subtracted from the worst-case hurricane surge values to determine which areas could be expected to be inundated.

  1. How should this data set be cited?

    US Army Corps of Engineers, 06/2008, Worst Case Hurricane Surge Inundation for Connecticut.

    Online links:
  2. What geographic area does the data set cover?

    Bounding coordinates:
    West: -73.667545
    East: -71.827365
    North: 41.541107
    South: 40.980246

  3. What does it look like?

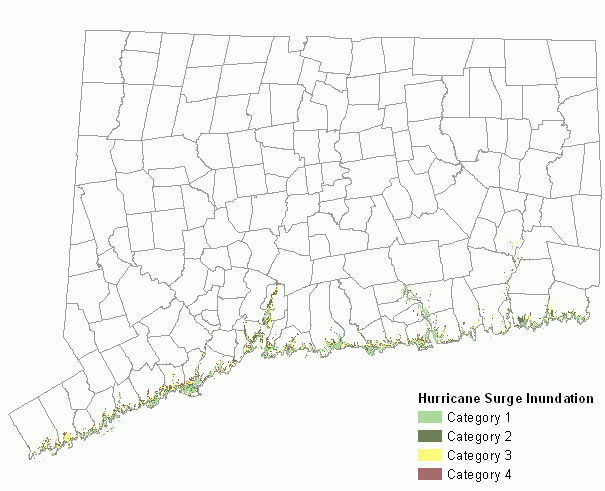

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/hurricane_surge_inundation_fullview.gif (GIF)
    Full view of Worst Case Hurricane Surge Inundation for Connecticut

    http://www.cteco.uconn.edu/metadata/dep/browsegraphic/hurricane_surge_inundation_detailview.gif (GIF)
    Detail view of Worst Case Hurricane Surge Inundation for Connecticut

  4. Does the data set describe conditions during a particular time period?

    Calendar date: 06/30/2008
    Currentness reference:
    ground condition

  5. What is the general form of this data set?

    Geospatial data presentation form: vector digital data

  6. How does the data set represent geographic features?

    1. How are geographic features stored in the data set?

      This is a Vector data set. It contains the following vector data types (SDTS terminology):
      • G-polygon (205410)
      It contains the following raster data types:
      • Dimensions 6374 x 6868 x 1, type Grid Cell

    2. What coordinate system is used to represent geographic features?

      The map projection used is Lambert Conformal Conic.

      Projection parameters:
      Lambert Conformal Conic
      Standard parallel: 41.200000
      Standard parallel: 41.866667
      Longitude of central meridian: -72.750000
      Latitude of projection origin: 40.833333
      False easting: 999999.999996
      False northing: 499999.999998

      Planar coordinates are encoded using coordinate pair.
      Abscissae (x-coordinates) are specified to the nearest 0.000328.
      Ordinates (y-coordinates) are specified to the nearest 0.000328.
      Planar coordinates are specified in survey feet.

      The horizontal datum used is North American Datum of 1983.
      The ellipsoid used is Geodetic Reference System 80.
      The semi-major axis of the ellipsoid used is 6378137.000000.
      The flattening of the ellipsoid used is 1/298.257222.

      Vertical coordinate system definition:
      Altitude system definition:
      Altitude datum name: North American Vertical Datum of 1988
      Altitude resolution: 1.000000
      Altitude encoding method: Explicit elevation coordinate included with horizontal coordinates

  7. How does the data set describe geographic features?

    Worst Case Hurricane Surge Inundation for Connecticut
    Worst Case Hurricane Surge Inundation for Middlesex County CT

    Shape
    Feature geometry. (Source: ESRI)


    Coordinates defining the features.

    HURR_CAT
    Hurricane Category (1-4) (Source: ESRI)


    Coordinates defining the features.

    Range of values
    Minimum:1
    Maximum:4
    Units:Hurricane Category

    SHAPE
    Feature geometry. (Source: ESRI)


    Coordinates defining the features.

    OBJECTID
    Internal feature number. (Source: ESRI)


    Sequential unique whole numbers that are automatically generated.

    SHAPE.area
    SHAPE.len
